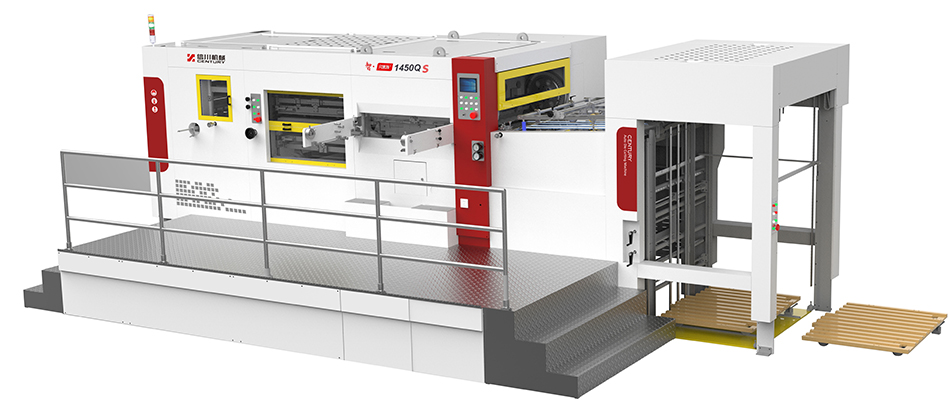

Automatic Flatbed Die Cutter, MWZ 1450QS
Technical Parameters
| Machine model | MWZ 1450QS |
| Max. sheet size | 1480 x 1080mm |
| Min. sheet size | 600 x 500mm |
| Max. cutting size | 1450 x 1050mm |
| Max. cutting force | 300 tons |
| Max. mechanical speed | 5500 sheets per hour |
| Stock range | Corrugated sheet up to 7mm Solid board 300-2000gsm |
| Height of cutting rule | 23.8mm |
| Pressure adjustment | ±1.5mm |
| Cutting precision | ±0.5mm |
| Min. front waste | 10mm |
| Max. pile height at feeder (including pallet) | 1750mm |
| Max. pile height at delivery (including pallet) | 1550mm |
| Chase size | 1480 x 1104mm |
| Dimension (L x W x H) | 10 x 5.2 x 2.5m |
| Machine weight | 26 Tons |
Machine Details
- Feeder Unit
- High speed top air suction feeding system ensures stable feeding of sheets.
- Feeding Table
- Side lays at both left and right sides push and pull convertible, ensuring accurate sheet feeding.
- Die Cutting Section
- Central positioning system provides fast job changeover and makes machine set-up easier.
- Advanced indexer and torsion clutch provides overload protection, ensuring safe operation.
- Stripping Section
- Triple action stripper is provided to adapt to different stripping jobs.
- Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.
- Delivery Section
- Non-stop pallet delivery system ensures continuous production, with machine height increased by 300mm.
Applications
MWZ 1450QS automatic flatbed die cutter is ideal for manufacturers of packaging boxes and carton boxes to use it as cardboard cutting equipment or corrugated die cutting equipment for cutting cardboards and corrugated boards.
