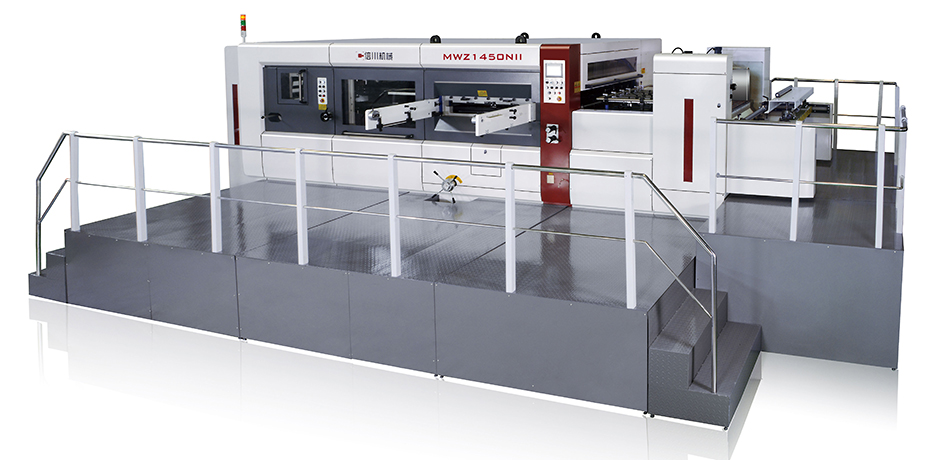

Automatic Flatbed Die Cutter, MWZ 1450Nii
MWZ 1450Nii automatic flatbed die cutter is a cost-efficient solution for handling corrugated boards and plastic sheets. It can achieve the maximum cutting size of 1450x1050mm, with a cutting speed of up to 4800 sheets per hour.
Technical Parameters
| Machine model | MWZ 1450Nii |
| Max. sheet size | 1480 x 1080mm |
| Minimum sheet size | 600 x 500mm |
| Max. cutting size | 1450 x 1050mm |
| Cutting force | Up to 300tons |
| Max. mechanical speed | 4800 sheets per hour |
| Stock range | Corrugated sheet 0.8-8.5 mm |
| Height of cutting rule | 23.8mm |
| Pressure adjustment | ±1.5mm |
| Cutting precision | ±0.5mm |
| Min. front waste | 10mm |
| Machine dimensions | Length: 9500mm |
| Width: 5560mm | |
| Height: 2600mm | |
| Machine weight | 24 Tons |
Machine Details

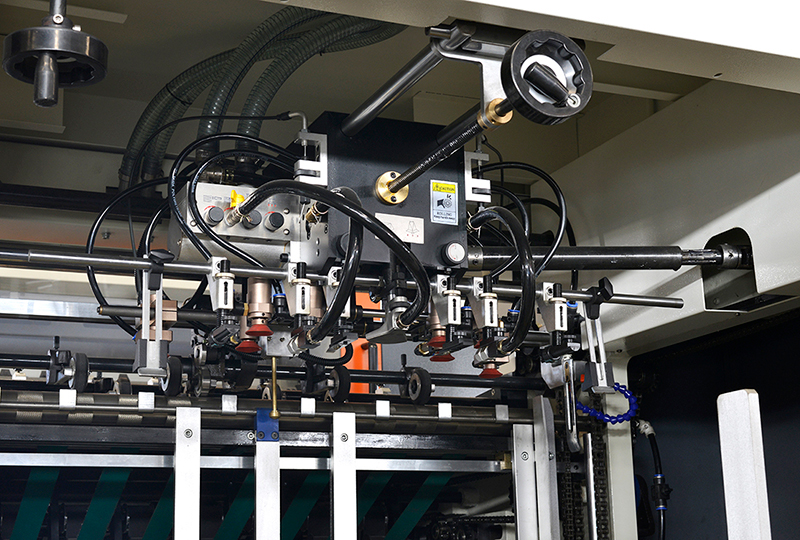

- Standard Lead Edge Feeder
- Lead edge feeder offers high speed precise sheet feeding.

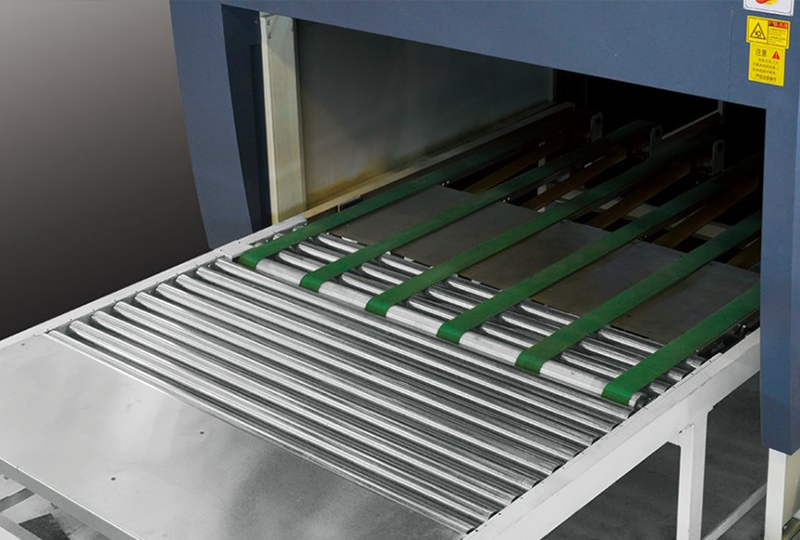

- Feeding Table
- Left and right side push lays ensure accurate alignment and power registration.
- Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.
- Die Cutting Section
- Central positioning system allows fast job changeover and easy machine set-up.
- Independent automatic self-lubrication system ensures smooth running while reducing maintenance job.
- Advanced cam indexer features torsion clutch for the protection against overload.

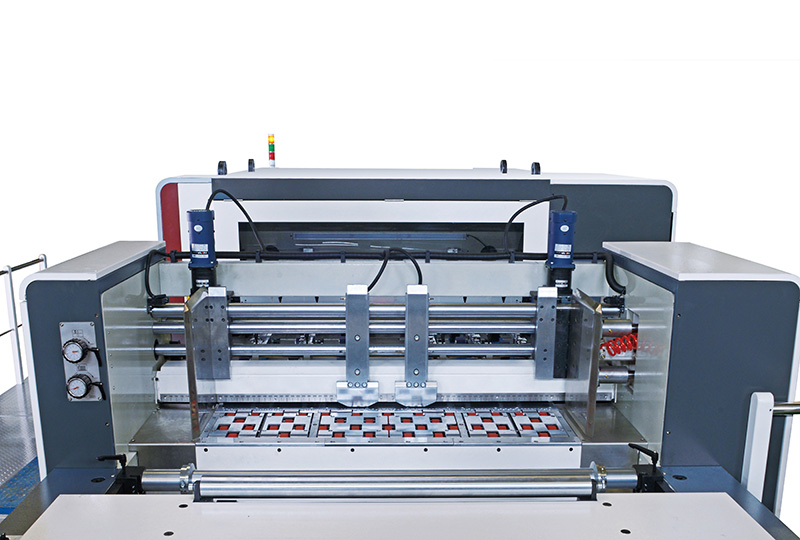

- Stripping Section
- Central positioning system simplifies stripping die set-up and allows fast job changeover.
- Heavy duty double action stripper efficiently removes waste, male and female stripping tools can accommodate various stripping tasks.
- The waste separator at front removes trim waste from the sheet and transfers it to the machine drive side by conveyor belt.

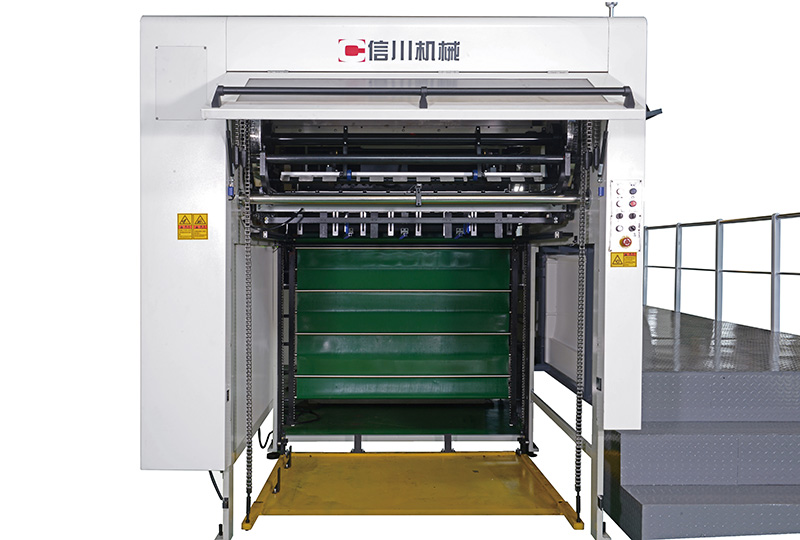

- Automatic pallet delivery system achieves non-stop feeding, with machine height increased by 300mm.
Applications
For manufacturers of cardboard boxes and packaging boxes, the MWZ 1450Nii automatic flatbed die cutter can be employed as a corrugated die cutting machine and a cardboard cutting machine to cut cardboards and corrugated boards.
