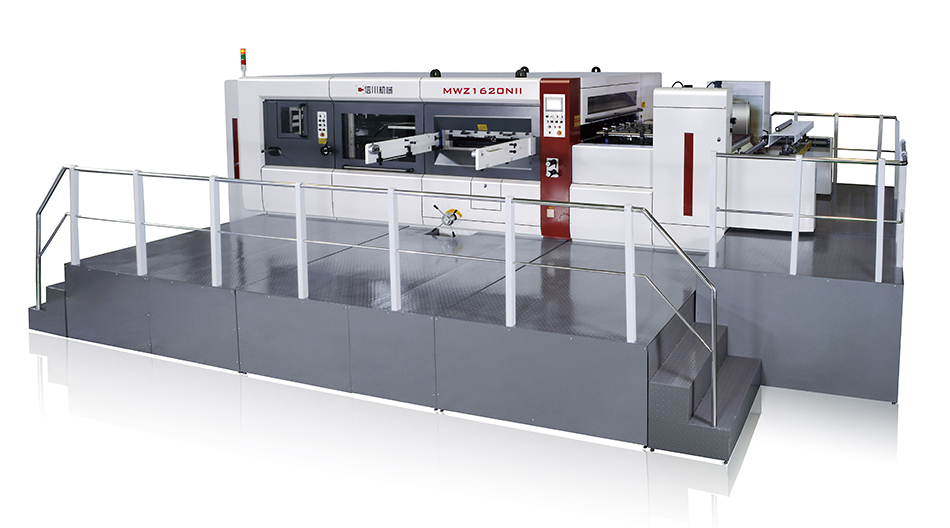

Automatic Flatbed Die Cutter, MWZ 1620Nii
Technical Parameters
| Machine model | MWZ 1620Nii |
| Max. sheet size | 1650 x 1210mm |
| Min. sheet size | 650 x 500mm |
| Max. cutting size | 1620 x 1190mm |
| Cutting force | Up to 300tons |
| Max. mechanical speed | 4500 sheets per hour |
| Stock range | Corrugated sheet 1-8.5 mm |
| Height of cutting rule | 23.8mm |
| Pressure adjustment | ±1.5mm |
| Cutting precision | ±0.5mm |
| Min. front waste | 10mm |
| Chase size | 1650x1220mm |
| Power consumption (without air pump) | 37kW // 380V, 3-PH, 50 Hz |
| Machine dimensions | Length: 9500mm |
| Width: 5560mm | |
| Height: 2600mm | |
| Machine weight | 28 Tons |
Machine Details
- Standard Lead Edge Feeder
- Lead edge feeder provides rapid and precise sheet feeding.
- Left and right side push lays ensure the accuracy of sheet feeding.

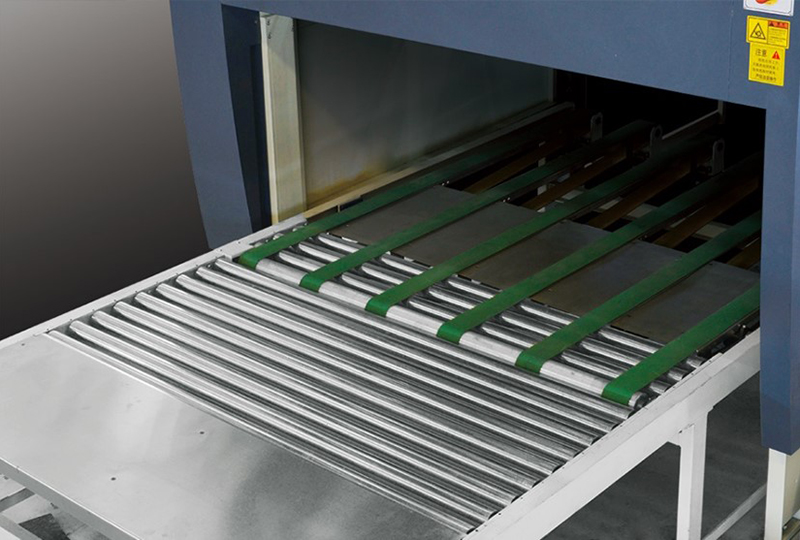

- Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.
- Die Cutting Section
- Central positioning system enables fast job changeover and simple machine set-up.
- Independent automatic self-lubrication system minimizes maintenance while ensuring smooth operation.
- Combination of advanced cam indexer and torsion clutch helps protect the die cutting machine from overload.

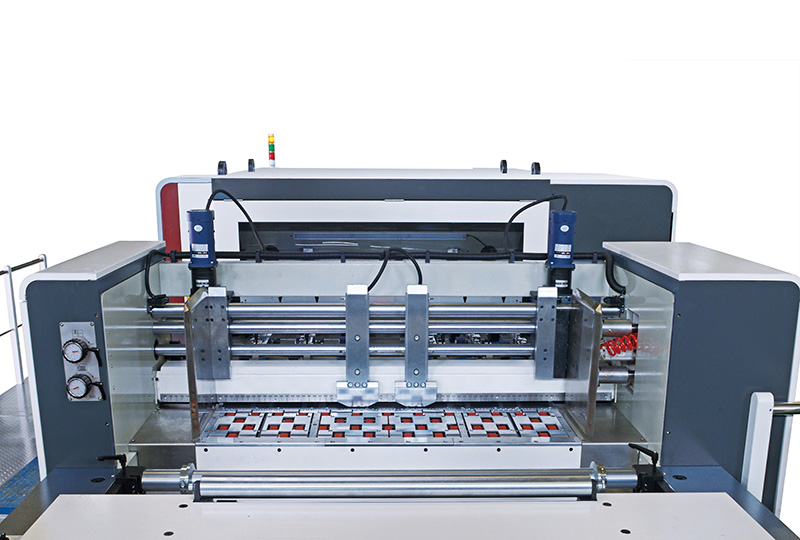

- Stripping Section
- Central positioning system makes it easier to set up the stripping die and enables fast job changeover.
- Heavy duty double action stripper efficiently removes waste, male and female stripping tools are provided to adapt to various stripping tasks.
- Trim waste is removed by the front waste separator, and it is then conveyed by conveyor belt to the machine drive side.

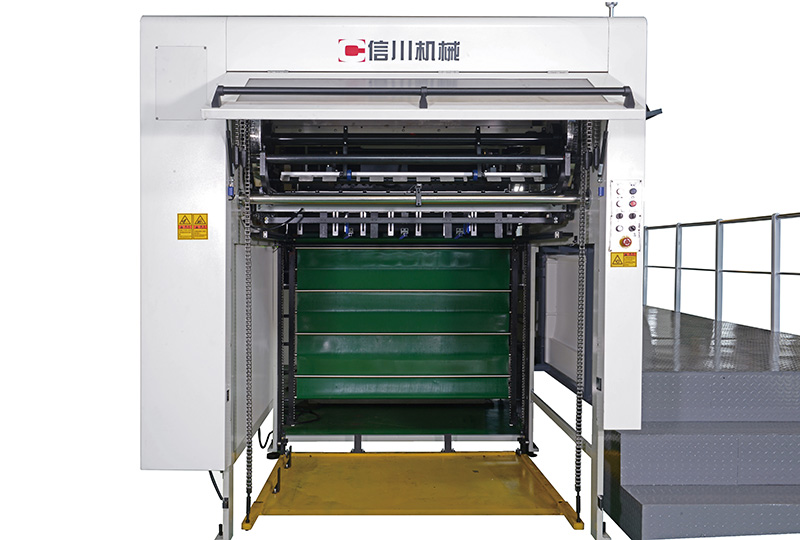

- Delivery Section
- Automatic pallet delivery system achieves non-stop feeding, with machine height increased by 300mm.
