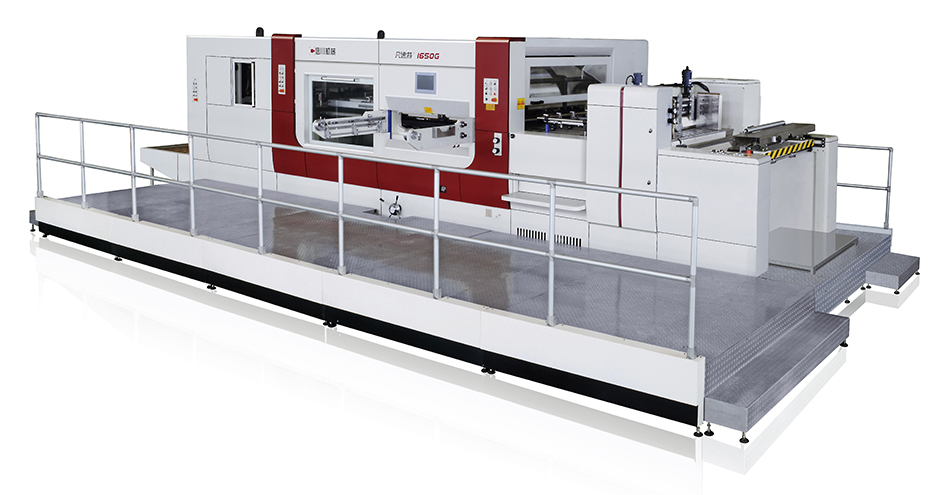

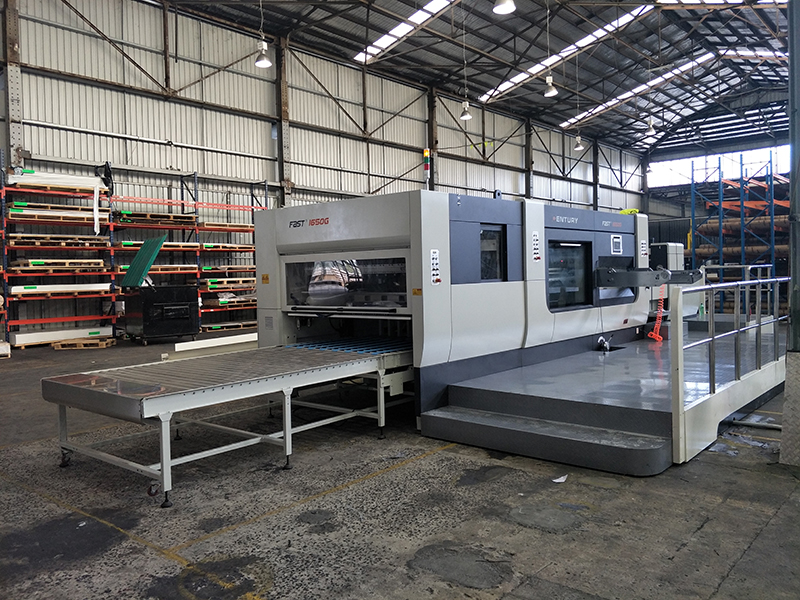

Automatic Flatbed Die Cutter, MWZ 1650G
Technical Parameters
| Machine model | MWZ 1650G |
| Max. sheet size | 1650 x 1200mm |
| Min. sheet size | 650 x 500mm |
| Max. cutting size | 1630 x 1180mm |
| Cutting force | Up to 450tons |
| Max. mechanical speed | 5500 sheets per hour |
| Stock range | Corrugated sheet 0.8-8.5mm |
| Height of cutting rule | 23.8mm |
| Pressure adjustment | ±1.5mm |
| Cutting precision | ±0.5mm |
| Min. front waste | 10mm |
| Chase size | 1660x1210mm |
| Machine dimension | Length: 11200mm Width: 5560mm Height: 2600mm |
| Power consumption (without air pump) | 45kW |
| Machine weight | 38 Tons |

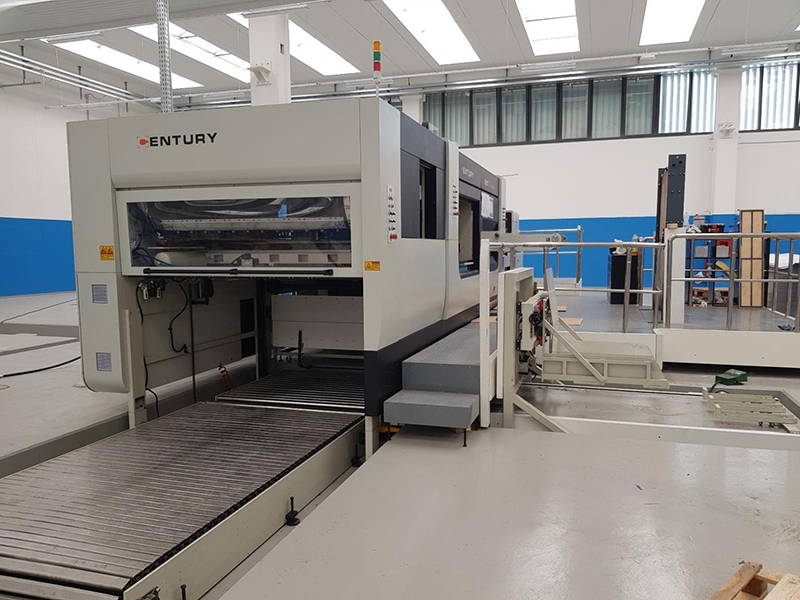

Machine Details

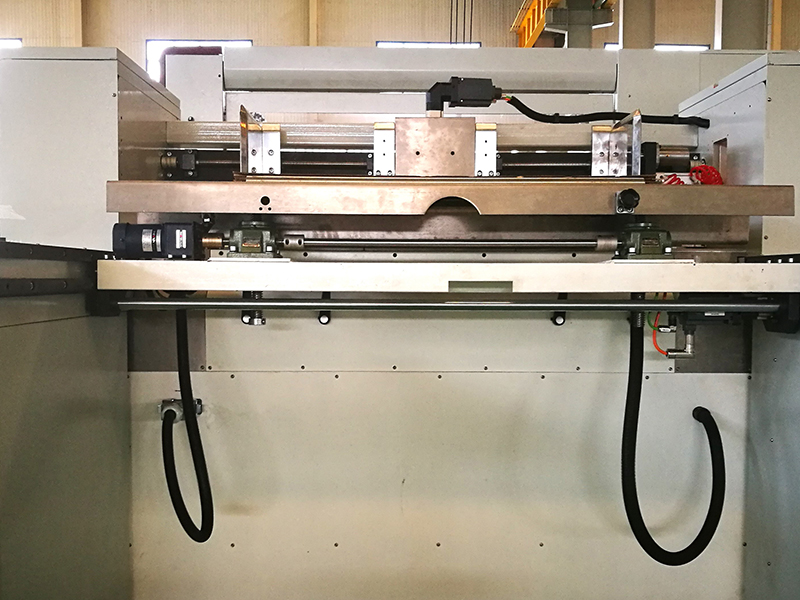

- Gear Driven Lead Edge Feeder
- High speed precise lead edge feeder ensures exceptional stability for sheet feeding.
- Back stopper with height adjustment function is suitable for feeding warped sheets.
- Side joggers keep pile of sheets in alignment to achieve accurate feeding.
- Adjustable support bar allows large format sheets feeding.
- Adjustable vacuum suction area supports full format sheets.

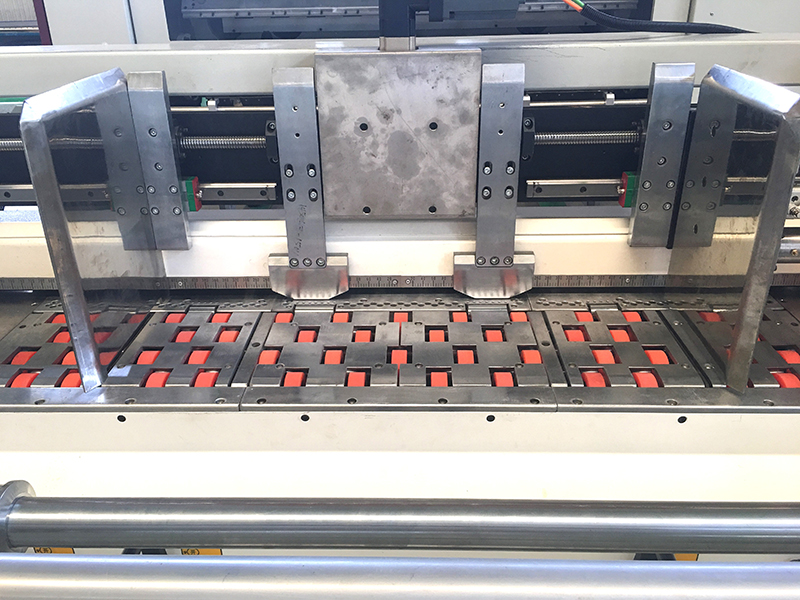

- Feeding Table
- Left and right-side push lays ensure accurate alignment and power registration.

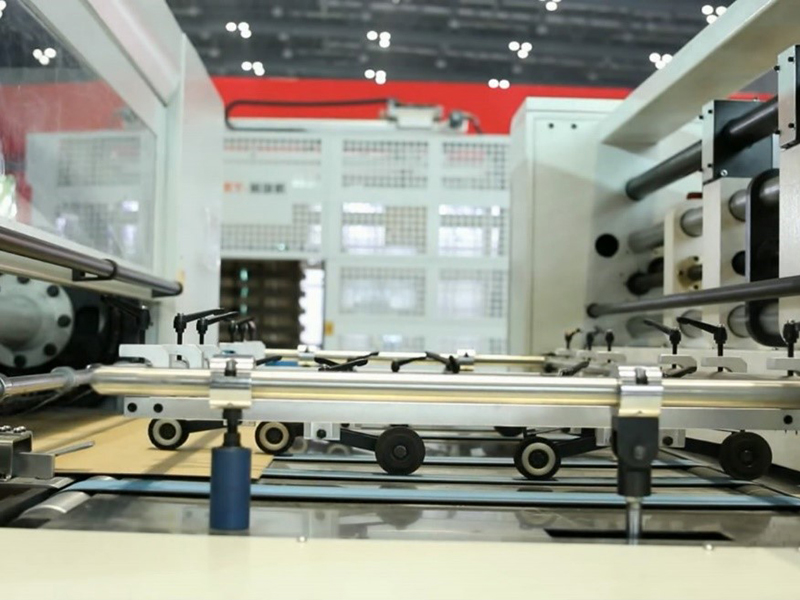

- Sheets are accurately fed to die cutting unit with the aid of brush rollers and pressure rollers.
- Die Cutting Section
- Standard central positioning system paired with self-locking system enables fast job changeover and machine set-up.
- Overload protection is guaranteed thanks to the adoption of advanced gear box with torsion clutch.
- Automatic self-lubrication system is located independently and it is provided for minimal maintenance.
- Air floating device enables easy withdrawal of the cutting plate.
- 7+2mm cutting plate is made of 65Mn steel, suitable for recycling.
- Stripping Section
- Central positioning system makes it easier to set up the stripping die and enables fast job changeover.
- Heavy duty double action stripper efficiently removes waste, male and female stripping tools are provided to adapt to various stripping tasks.
- Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.
- Delivery Section
- Automatic delivery system ensures non-stop production.
- Delivery action can be monitored through safety window to ensure safe operation, and side joggers are adjustable for neat stacking.
- Electrical Control Part
- All electrical components meet CE standard.
- Siemens PLC technology is adopted.
