Semi-auto Flatbed Die Cutter

Semi-auto Flatbed Die Cutter
Request a Quote

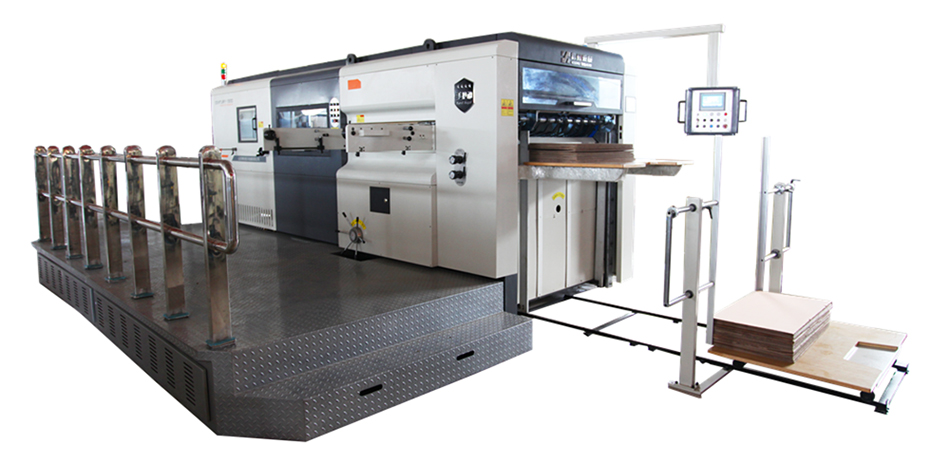

MWB series semi-auto flatbed die cutters are primarily used to handle corrugated boards, cardboards and plastic sheets for the production of POP/POS displays, corrugated cartons and packaging boxes.

Key Features
  • Material feeder with automatic pile lifting system provides smooth feeding with high efficiency;
  • Central positioning system allows fast job changeover and easy machine set-up;
  • Double or triple action stripper is available for positive stripping;
  • Pallet delivery system offers high stability to piles of sheets;
  • Format options are available in 1300x980mm, 1480x1080mm, 1650x1200mm, 1850x1400mm, 2100x1500mm, 2300x1500mm, 2500x1600mm;
Machine Details
  • Feeder Unit
    • Effective manual feeding system
    • Camera for monitoring the sheets conveying inside the flatbed die cutter
  • Die Cutting Section
    • Central positioning system for quick cutting die set-up and fast job changeover
    • Independent automatic self-lubrication system for smooth running and prolonged service life
    • Safety door and photoelectric device for safe operation
  • Stripping Unit
    • Central positioning system for quick stripping die set-up and fast job changeover
    • Double action stripper with male/female tools for different stripping tasks
    • Optional triple action stripper with male/female tools and lower stripping pins included
  • Delivery Unit
    • Pallet delivery system for the stability of sheet pile
    • Front and lateral support for neat stacking
Technical Parameters
Semi-auto Flatbed Die Cutter without Stripping
Machine model MWB 1300 MWB 1450 MWB 1620 MWB 1850 MWB 2100 MWB 2300 MWB 2500
Max. sheet size 1330x980mm 1480x1080mm 1650x1200mm 1880x1420mm 2110x1520mm 2300x1520mm 2500x1620mm
Min. sheet size 550x480mm 550x480mm 650x550mm 650x550mm 650x550mm 650x550mm 650x550mm
Max. cut size 1300x960mm 1450x1050mm 1620x1190mm 1850x1400mm 2100x1500mm 2270x1500mm 2470x1600mm
Max. cutting pressure 250 tons 300 tons 300 tons 350 tons 400 tons 450 tons 500 tons
Max. speed 4200 s/h 4000 s/h 3600 s/h 3500 s/h 3000 s/h 3000 s/h 2800s/h
Stock range Cardboard: 100-1800gsm; corrugated board 1-8.5mm Corrugated board 1-9mm Corrugated board 1-11mm
Cutting precision ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Min. front waste 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Cutting force adjustment range ±1mm ±1mm ±1mm ±1mm ±1mm ±1mm ±1mm
Machine size (1) 6.2x4.6x2.3mm 6.3x4.8x2.4m 6.7x5x2.6m 7.6x6x2.8m 7.7x6.3x2.9m 8x6.5x2.9m 8.5x6.8x2.9m
Machine size (2) 4.2x2.5x2.3m 4.5x2.7x2.4m 4.7x2.9x2.6m 5x3.1x2.8m 5.4x3.5x2.9m 5.5x3.7x2.9m 5.7x3.9x2.9m
Power consumption 16.5kW 20.5kW 20.5kW 24.6kW 32.6kW 34kW 36kW
Power requirement 380V (415V), 3-PH, 50 (60)Hz
Net weight 15 tons 17 tons 21 tons 26 tons 31 tons 33 tons 36 tons

Machine size (1) includes pre-loader, working platform
Machine size (2) doesn’t include pre-loader and working platform

Semi-auto Flatbed Die Cutter with Stripper
Machine model MWB 1300Q MWB 1450Q MWB 1620Q MWB 1850Q MWB 2100Q MWB 2300Q MWB 2500Q
Max. sheet size 1330x980mm 1480x1080mm 1650x1200mm 1880x1420mm 2110x1520mm 2300x1520mm 2500x1620mm
Min. sheet size 550x480mm 550x480mm 650x550mm 650x550mm 650x550mm 650x550mm 650x550mm
Max. cut size 1300x960mm 1450x1050mm 1620x1190mm 1850x1400mm 2100x1500mm 2270x1500mm 2470x1600mm
Max. cutting pressure 250 tons 300 tons 300 tons 350 tons 400 tons 450 tons 500 tons
Max. speed 4200 s/h 4000 s/h 3600 s/h 3500 s/h 3000 s/h 3000 s/h 2800s/h
Stock range Cardboard: 300-1800gsm; corrugated board 1-8.5mm Corrugated board 1-9mm Corrugated board 1-11mm
Cutting precision ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Min. front waste 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Cutting force adjustment range ±1mm ±1mm ±1mm ±1mm ±1mm ±1mm ±1mm
Machine size (1) 7.4x4.6x2.3mm 7.7x4.8x2.4m 8.1x5x2.6m 8.5x6x2.8m 9x6.3x2.9m 9.3x6.5x2.9m 9.7x6.8x2.9m
Machine size (2) 5.5x2.5x2.3m 5.8x2.7x2.4m 6.1x2.9x2.6m 6.5x3.1x2.8m 7x3.5x2.9m 7.5x3.7x2.9m 7.9x3.9x2.9m
Power consumption 17kW 21kW 21kW 25kW 33kW 36kW 38kW
Power requirement 380V (415V), 3-PH, 50Hz
Net weight 17 tons 19 tons 24 tons 28 tons 33 tons 35 tons 39 tons

Machine size (1) includes pre-loader, working platform
Machine size (2) doesn’t include pre-loader and working platform
