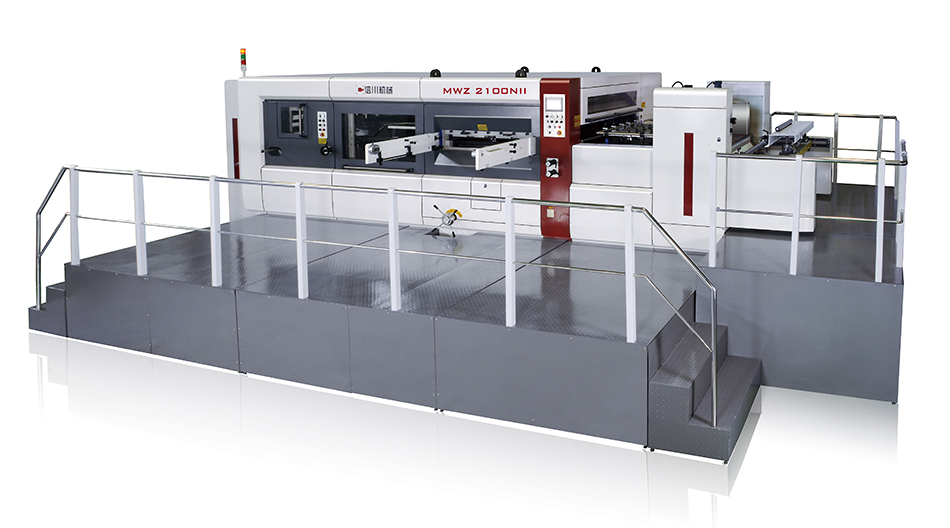

Automatic Flatbed Die Cutter, MWZ 2100Nii
Technical Parameters
| Machine model | MWZ 2100 Nii |
| Max. sheet size | 2100 x 1520mm |
| Minimum sheet size | 650 x 500mm |
| Max. cutting size | 2080 x 1500mm |
| Cutting force | Up to 400tons |
| Max. mechanical speed | 3000 sheets per hour |
| Stock range | Corrugated sheet 1-9mm |
| Height of cutting rule | 23.8mm |
| Pressure adjustment | ±1mm |
| Cutting precision | ±0.5mm |
| Min. front waste | 8mm |
| Chase size | 2110x1524mm |
| Power consumption (without air pump) | 47.6kW // 380V, 3-PH, 50 Hz |
| Machine dimensions | Length: 9500mm |
| Width: 5560mm | |
| Height: 2600mm | |
| Machine weight | 34 Tons |
Machine Details
- Standard Lead Edge Feeder
- Lead edge feeder provides fast and precise sheet feeding.
- Left and right side push lays ensure accurate alignment and power registration.

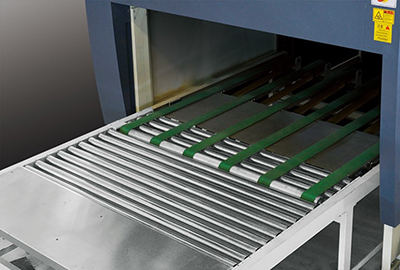

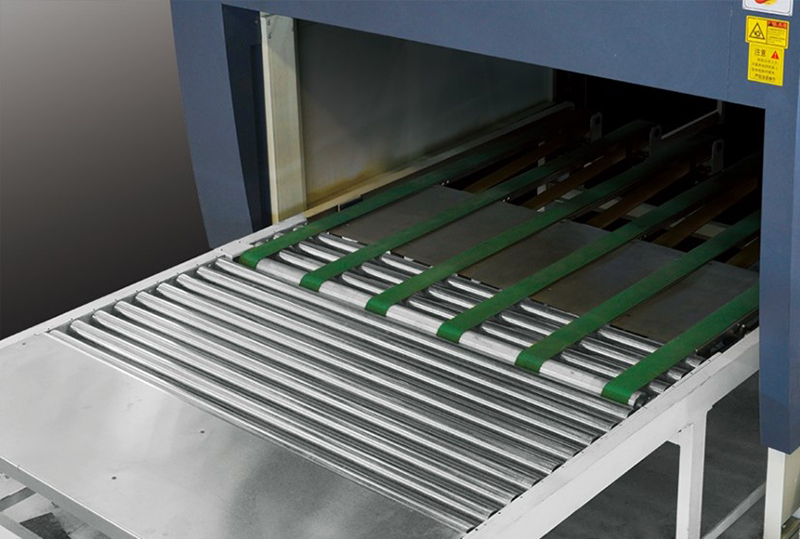

- Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.

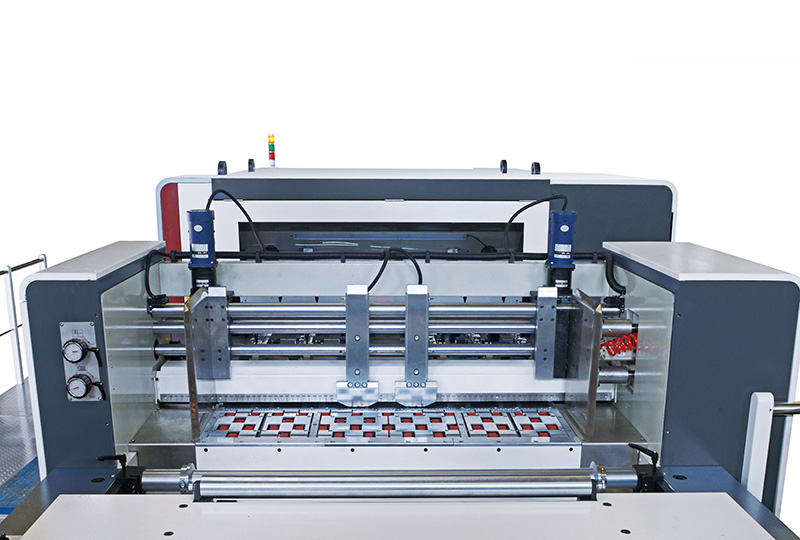

- Die Cutting Section
- Central positioning system allows fast job changeover and easy machine set-up.
- Independent automatic self-lubrication system ensures smooth running and reduces maintenance job.
- Advanced cam indexer features torsion clutch for the protection against overload.
- Stripping Section
- Central positioning system allows fast job changeover and simplifies stripping die set-up.
- Heavy duty double action stripper efficiently removes waste, male and female stripping tools can accommodate various stripping tasks.
- Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.

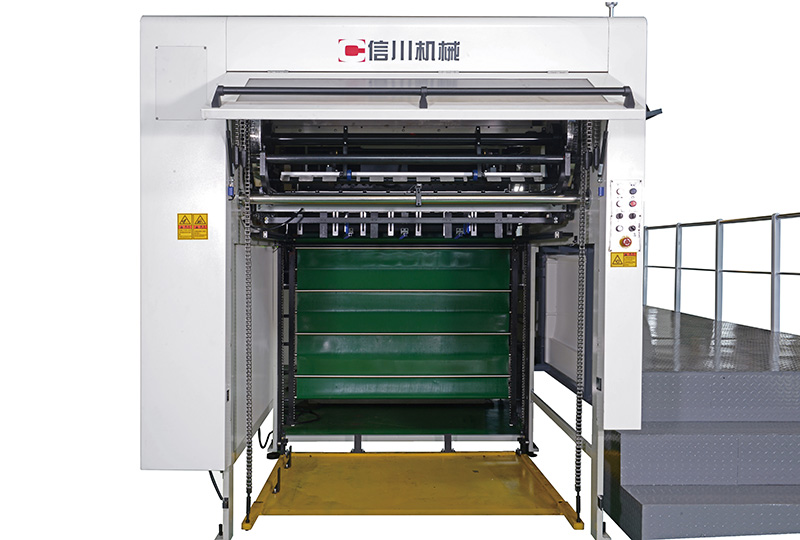

- Delivery Section
- Non-stop pallet delivery system ensures continuous production, with height increased by 300mm.
Applications
Our MWZ 2100Nii automatic flatbed die cutter is well suited for cutting cardboards and corrugated boards of packaging boxes and carton boxes.
