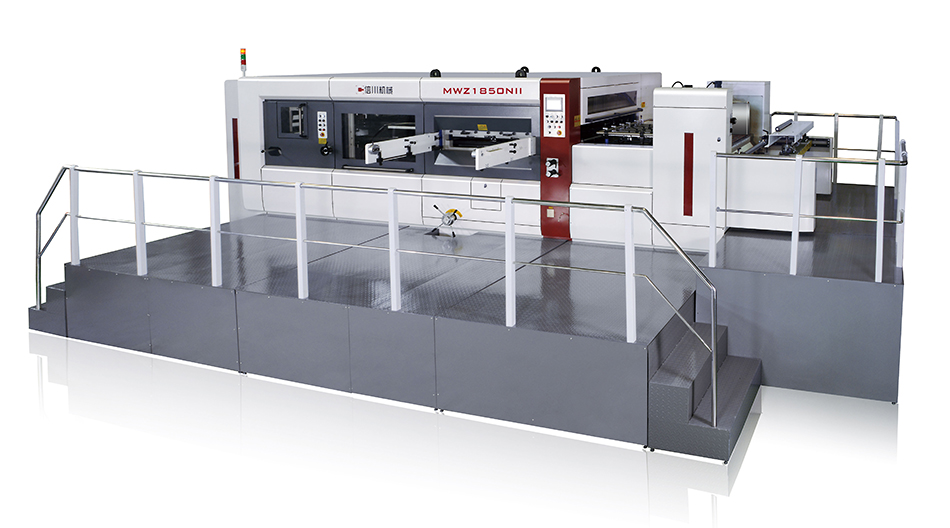

Automatic Flatbed Die Cutter, MWZ 1850Nii
Technical Parameters
| Model | MWZ 1850N | |
| Max. sheet size | 1880 x 1420mm | |
| Min. sheet size | 650 x 550mm | |
| Max. cutting size | 1850 x 1400mm | |
| Cutting force | Up to 350 tons | |
| Max. speed | 3,500sph | |
| Stock range | Corrugated sheet1-9mm | |
| Pressure adjustment | ±1mm | |
| Cutting precision | ±0.5mm | |
| Min. front waste | 10mm | |
| Chase size | 1890 x 1430mm | |
| Power consumption (without air pump) | 37 kW // 380V, 3-PH, 50/60Hz | |
| Machine dimensions | Length | 11000mm |
| Width | 5530mm | |
| Height | 2600mm | |
| Machine weight | 34 Tons | |
Machine Details
- Standard Lead Edge Feeder
- Lead edge feeder provides fast and precise sheet feeding.

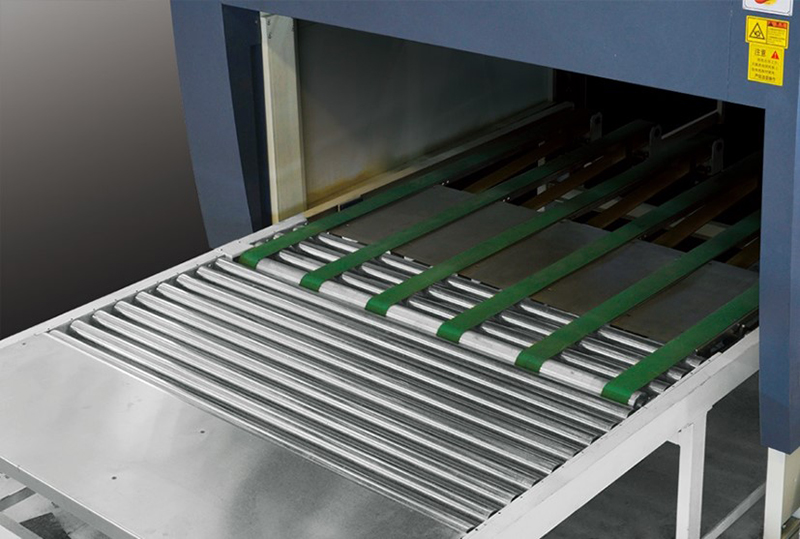

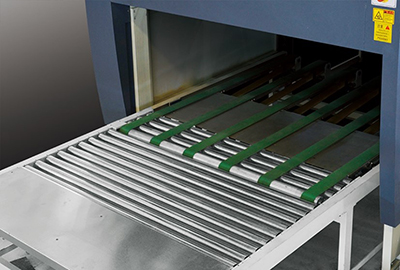

- Feeding Table
- Left and right side push lays ensure accurate alignment and power registration.
- Servo motor is adopted to control conveyor belt, ensuring that the sheets are accurately fed to the die cutter.

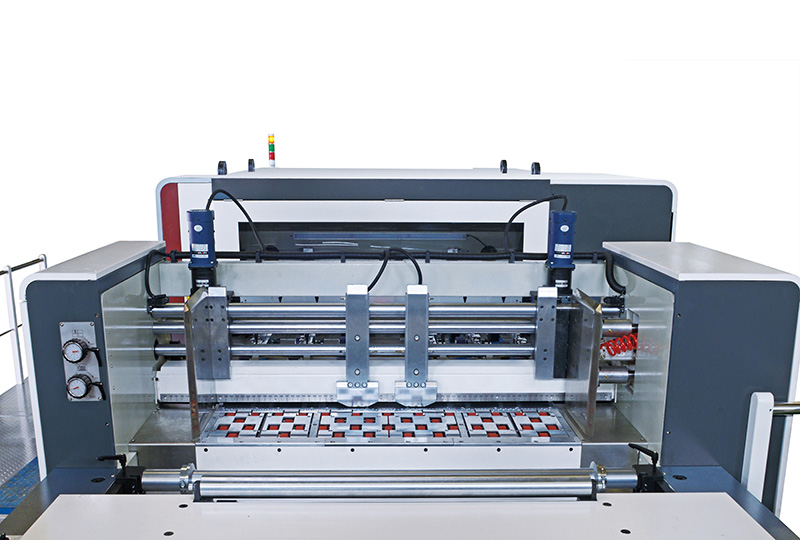

- Die Cutting Section
- Central positioning system is provided to ensure fast job changeover and easy machine set-up.
- Independent automatic self-lubrication system ensures smooth running while reducing maintenance job.
- Combination of advanced cam indexer and torsion clutch helps protect the die cutting machine from overload.
- Stripping Section
- Central positioning system simplifies stripping die set-up and allows fast job changeover.
- Heavy duty double action stripping system ensures positive stripping, male and female stripping tools are offered to accommodate various stripping tasks.
- Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.

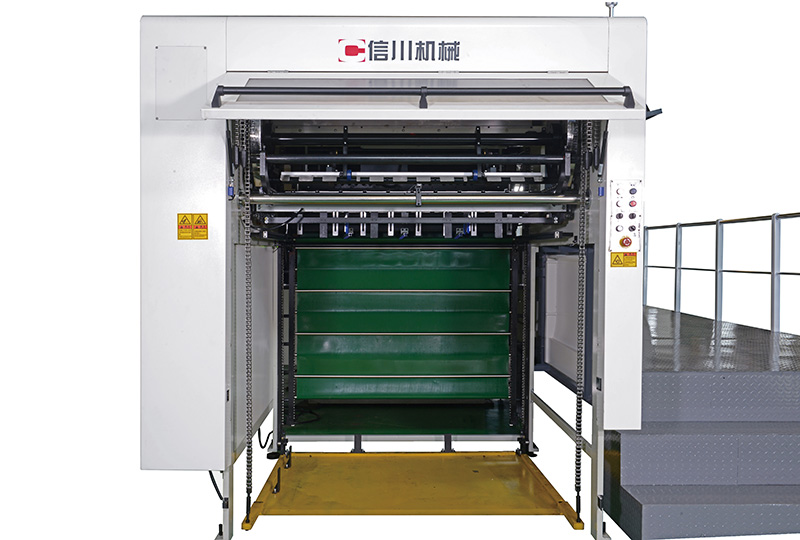

- Delivery Section
- Automatic pallet delivery system provides non-stop feeding, with machine height increased by 300mm.
Applications
Our MWZ 1850Nii automatic flatbed die cutter is well suited for manufactures of packaging boxes and carton boxes to cut cardboards and corrugated boards.
