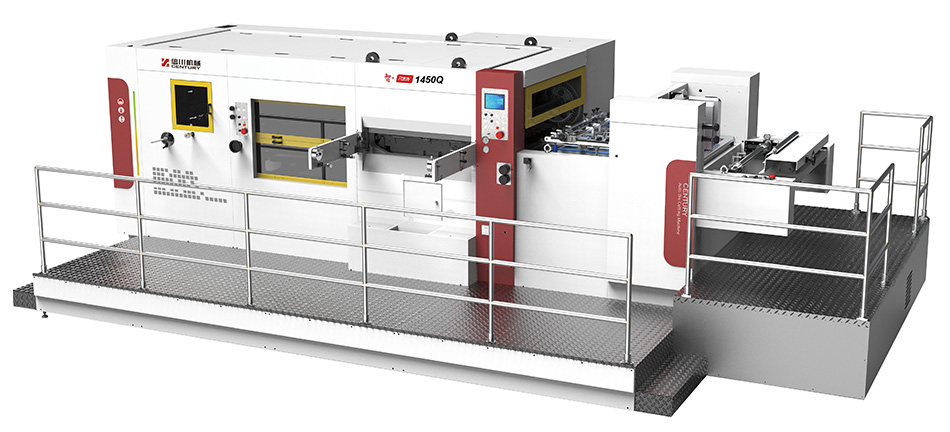

العربيةAutomatic Flatbed Die Cutter, MWZ 1450Q
Technical Parameters
| Machine model | MWZ 1450Q | |
| Max. sheet size | 1480 x 1080mm | |
| Min. sheet size | 600 x 500mm | |
| Max. cutting size | 1450 x 1050mm | |
| Max. cutting force | 300 tons | |
| Max. mechanical speed | 5500 sheets per hour | |
| Stock range | Corrugated sheet 0.8-8.5mm | |
| Height of cutting rule | 23.8mm | |
| Pressure adjustment | ±1.5mm | |
| Cutting precision | ±0.5mm | |
| Min. front waste | 10mm | |
| Chase size | 1480X1104mm | |
| Machine dimensions | Length | 10000mm |
| Width | 5400mm | |
| Height | 2900mm | |
| Machine weight | 26T | |
Machine Details

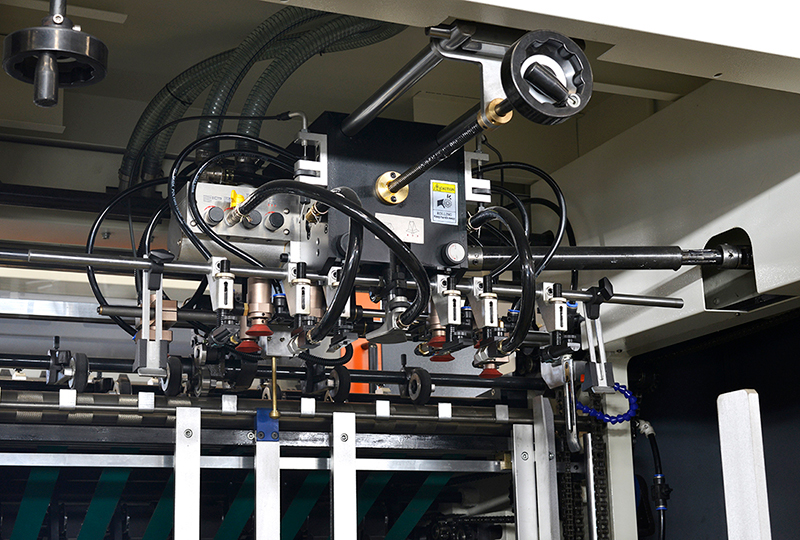

- Gear Driven Lead Edge Feeder
- High speed lead edge feeder paired with robust feeding table makes the flatbed die cutting machine not only suitable for cutting corrugated boards but also applicable to laminated paperboards.
- Height-adjustable back stopper is able to feed warped sheets.
- Adjustable vacuum suction power allows large sheet feeding.

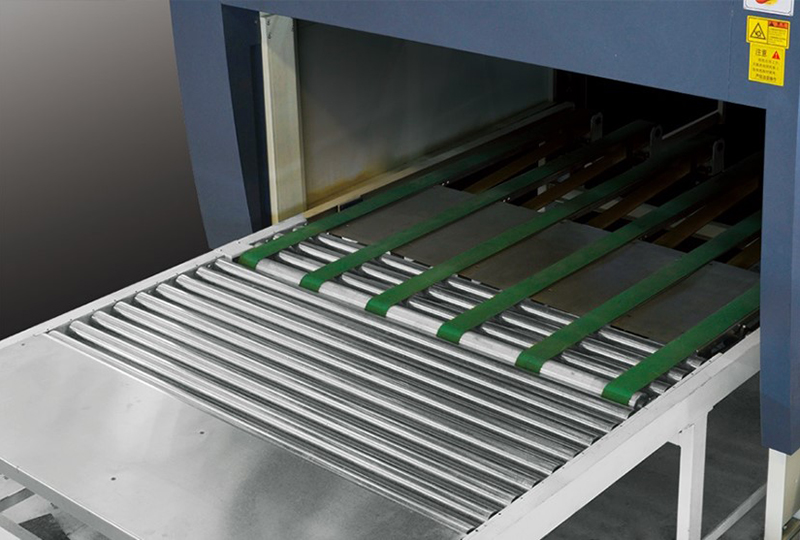

- Servo Driven Feeding Table
- Push lays on left and right hand sides guarantee accurate alignment and power registration.
- With the help of brush rollers and pressure rollers, sheets are accurately fed to die cutting unit.
- Die Cutting Section
- Automatic self-lubrication system is independently located to ensure smooth running and minimal maintenance.
- Central positioning system can help simplify machine set-up while achieving fast job changeover.
- Gear drive system is used as main drive for high speed operation.

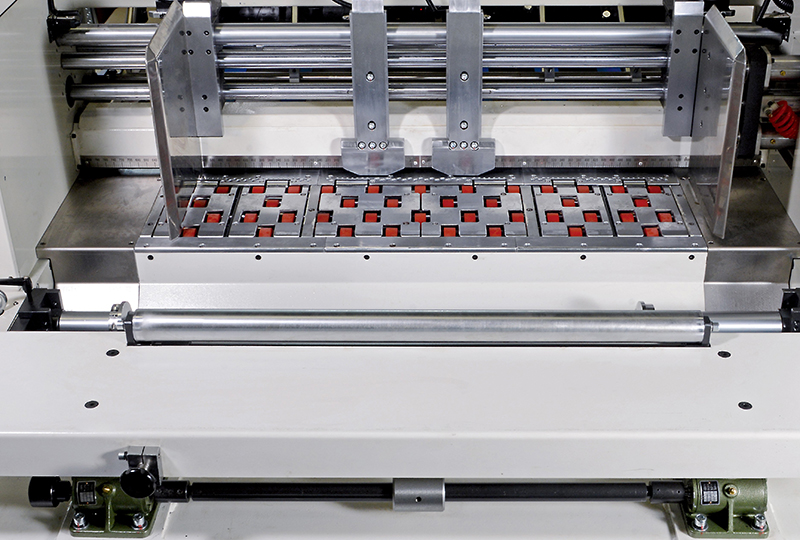

- Stripping Section
- Central positioning system ensures quick stripping die set-up and fast job changeover.
- Heavy duty double action stripping system efficiently removes waste, ensuring positive stripping.
- Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.

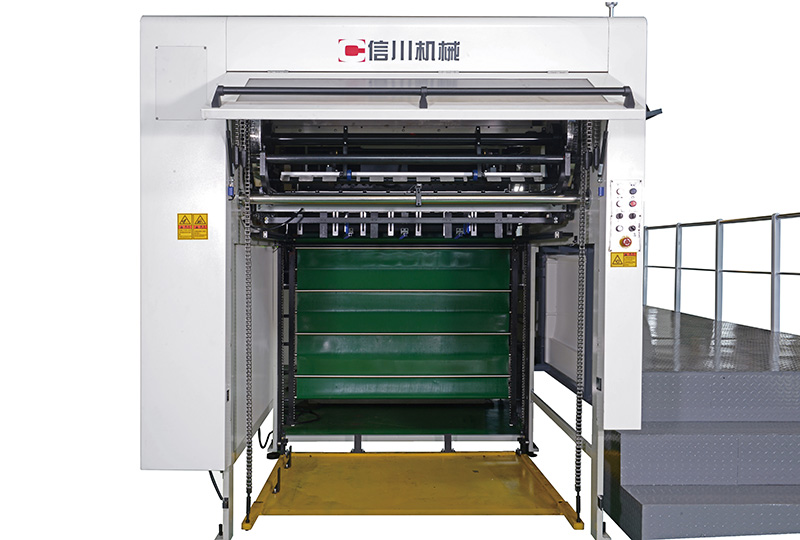

- Delivery Section
- Non-stop pallet delivery system assists in continuous production.
- Front, back and side joggers are available for neat stacking.
Applications
MWZ 1450Q automatic flatbed die cutter is primarily suited to cut cardboards and corrugated boards for the production of packaging boxes and corrugated carton boxes.
