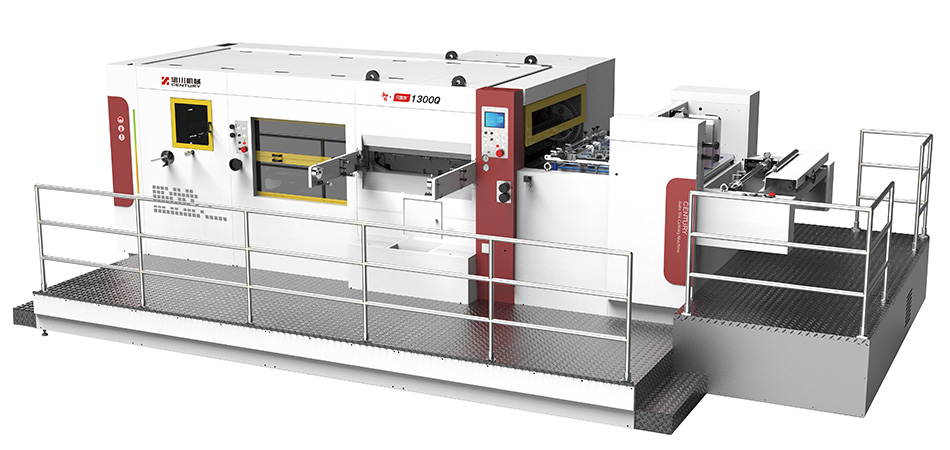

MWZ 1300Q automatic flatbed die cutter is a high speed die cutting machine specifically designed for corrugated board cutting. It can achieve maximum cutting size of 1300 x 960mm, with a cutting speed of up to 6000 sheets every hour.
Technical Parameters
Machine model
MWZ 1300Q
Max. sheet size
1330 x 980mm
Min. sheet size
550 x 480mm
Max. cutting size
1300 x 960mm
Cutting force
Up to 300tons
Max. mechanical speed
6000 sheets per hour
Stock range
Corrugated sheet 0.8-8.5 mm
Height of cutting rule
23.8mm
Pressure adjustment
±1.5mm
Cutting precision
±0.5mm
Min. front waste
10mm
Machine weight
23 Tons
Machine Details

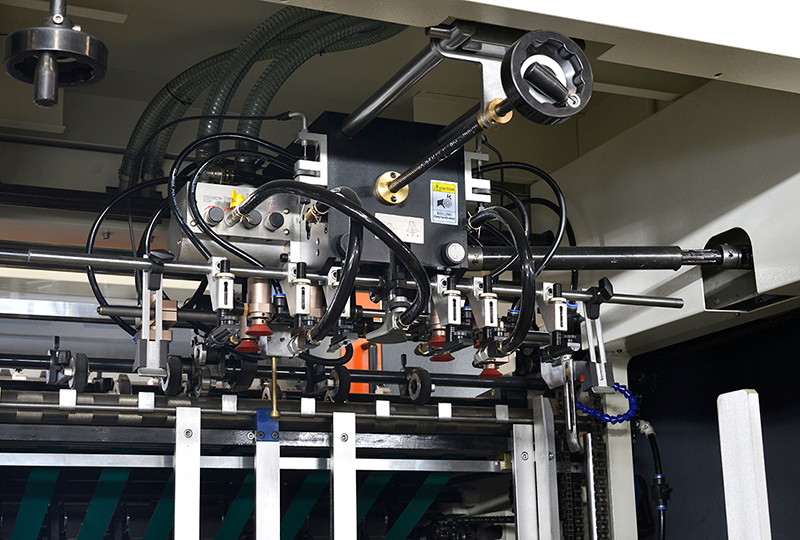

Gear Driven Lead Edge Feeder
High speed lead edge feeder paired with robust feeding table enables the flatbed die cutting machine suitable for cutting both corrugated boards and laminated paperboards.
Height-adjustable back stopper is suited to handle warped sheets.
Vacuum suction with adjustable power allows large sheet feeding with ease.

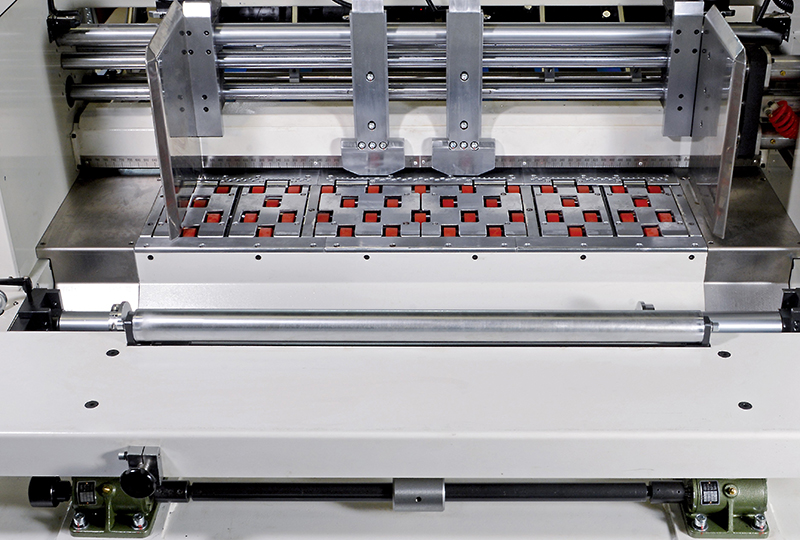

Servo Driven Feeding Table
Left and right side push lays ensure accurate alignment and power registration.
Brush rollers and pressure rollers make sure that the sheets are accurately transferred to die cutting unit.
Die Cutting Section
Independent automatic self-lubrication system ensures smooth running with less maintenance.
Central positioning system allows fast job changeover and easy machine set-up.
Gear drive system is used as main drive to provide high speed operation.
Stripping Section
Central positioning system simplifies stripping die set-up and allows fast job changeover.
