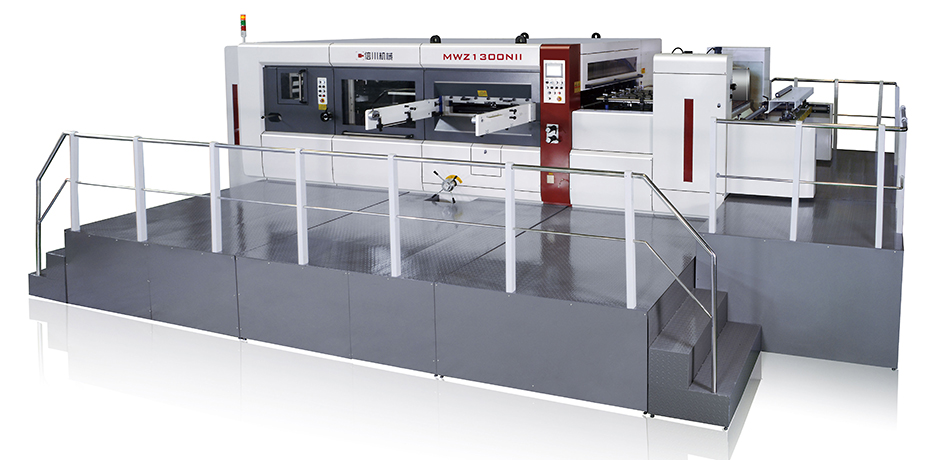

MWZ 1300Nii automatic flatbed die cutter is featured by a maximum cutting size of up to 1300 x 960mm, and capable of cutting 5000 sheets per hour. It is an ideal converting machine for manufacturers who require precise die-cutting of corrugated boards, laminated paperboards, carton boards and corrugated plastic sheets.
Technical Parameters
Machine model
MWZ 1300Nii
Max. sheet size
1330 x 980mm
Min. sheet size
550 x 480mm
Max. cutting size
1300 x 960mm
Cutting force
Up to 250tons
Max. mechanical speed
5000 sheets per hour
Height of cutting rule
23.8mm
Pressure adjustment
±1.5mm
Cutting precision
±0.5mm
Min. front waste
10mm
Chase size
1330x980mm
Power consumption (without air pump)
29kW // 380V, 3-PH, 50/60 Hz
Machine dimensions
Length: 9500mm
Width: 5560mm
Height: 2600mm
Machine weight
22 Tons
Machine Details
Standard Lead Edge Feeder
Lead edge feeder offers high speed precise sheet feeding.

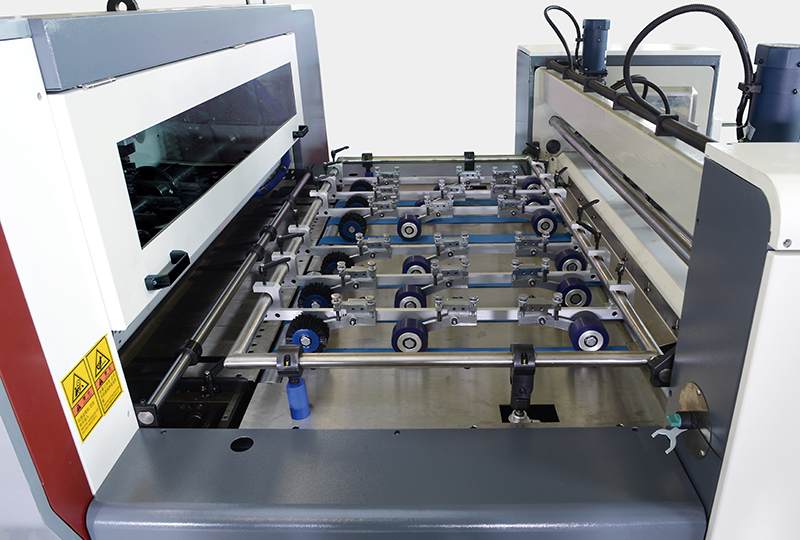

Feeding Table
Left and right side push lays ensure accurate alignment and power registration.
Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.

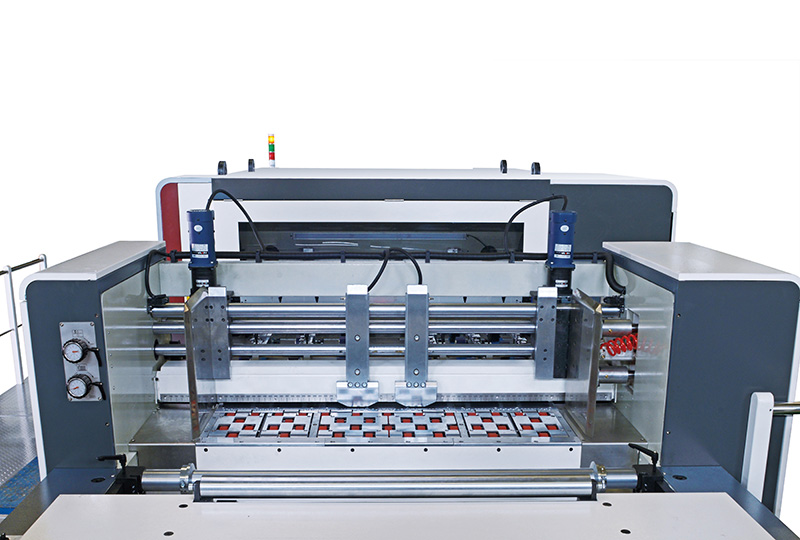

Stripping Section
Central positioning system simplifies stripping die set-up and allows fast job changeover
Heavy duty double action stripper efficiently removes waste, male and female stripping tools can accommodate various stripping tasks.
The waste separator at front removes trim waste from the sheet and transfers it to the machine drive side by conveyor belt.

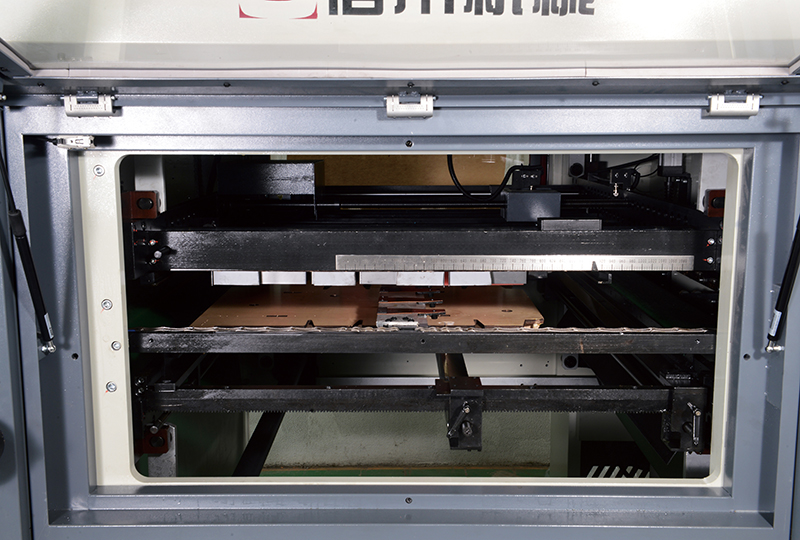

Die Cutting Section
Central positioning system allows fast job changeover and easy machine set-up.
Independent automatic self-lubrication system ensures smooth running while reducing maintenance job.
Advanced cam indexer features torsion clutch for the protection against overload.

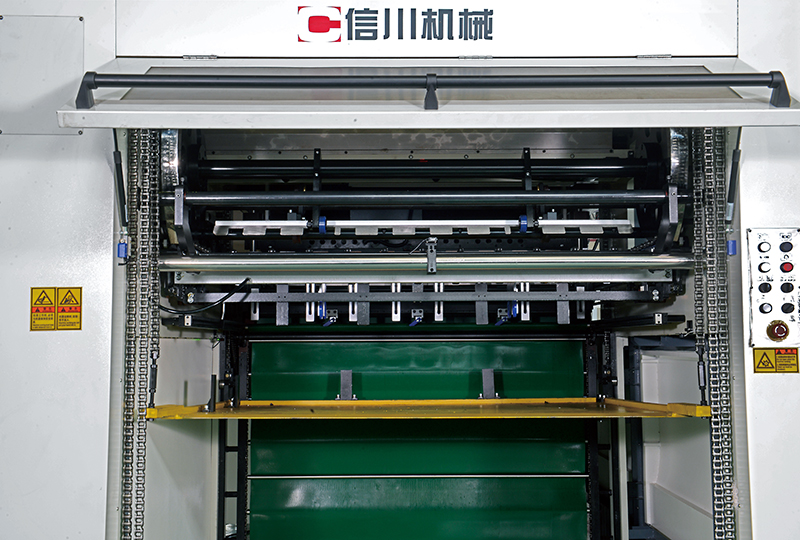

Delivery Section
Automatic pallet delivery system achieves non-stop feeding, with machine height increased by 300mm.
Applications
MWZ 1300Nii automatic flatbed die cutter can be used as cardboard cutting machine and corrugated die cutting machine to cut cardboards and corrugated boards for manufacturers of cardboard boxes and packaging boxes.
