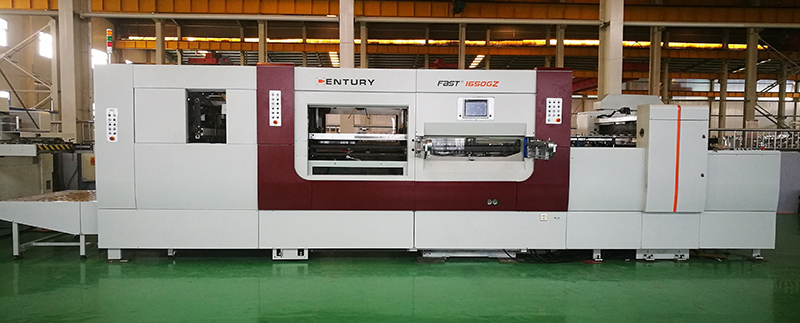

MWZ 1650GZ Flatbed Die Cutting Machine

This product has been discontinued and removed from our shelves.

MWZ 1650GZ flatbed die cutting machine is the upgrade version of 1650G die cutting machine.

• MWZ 1650GZ flatbed die cutting machine is built for quick set-up, safety, wide range stock and high productivity.
• Extra 13 Siemens servo motors are equipped for high-level automation, minimum machine setup time and fast job recall function.
• The lead edge feeder is able to transfer F flute to double wall corrugated sheets, laminated sheets, Plastic board and heavy industrial board.
• Gear driven systems for stable and accurate performance.
• Center line system equipped to be compatible with cutting forms used in flatbed die cutters of other brands. And to offer quick machine setup and job changes.
• Automatic and independent self-lubrication system built to save maintenance job.
• Automatic and independent Self-lubrication system for main drive chain.
• Servo motors of the feeder and frequency inverter and electrical parts of Siemens, which offers higher compatibility with Siemens PLC system and better motion control.
• Double action stripping system with heavy duty movements for positive stripping work.
• Front waste was transferred out of machine via conveyor system.
• Auto-batch delivery system.
• Strong and heavy cast-iron built machine body for long life span and stable performance.
• All the parts selected and assembled are built for stable performance and long run.
• Maximum sheet size: 1650 x 1200mm
• Minimum sheet size: 600 x 500mm
• Maximum cutting force: 450Tons
• Applicable to corrugated board converting with thickness from 1-9mm.
• Maximum mechanic speed: 5,500 s/h.
