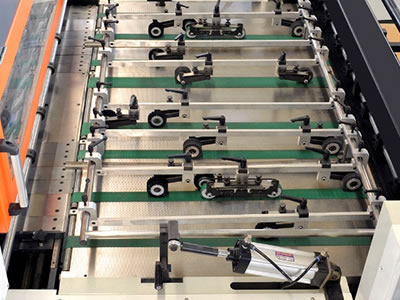

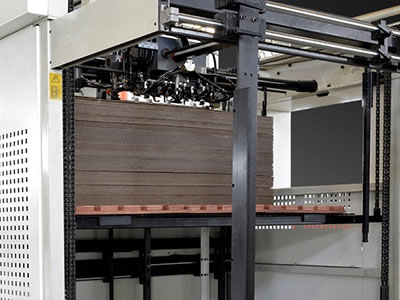

The feeding section is equipped with an advanced paper feeding system.
E, B, C, A flue and double walls are applicable with the feeder section.

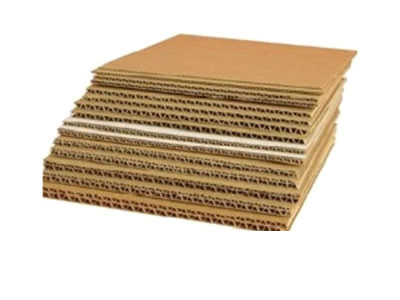

Flexible paper feeding types for single flute and double wall corrugated board.
There are also four pick up and four forward suction heads with angle adjustment.

The servo system controls the feeding speed.
A photoelectric detector and side guard device is used for high speed feeding and precise registration.

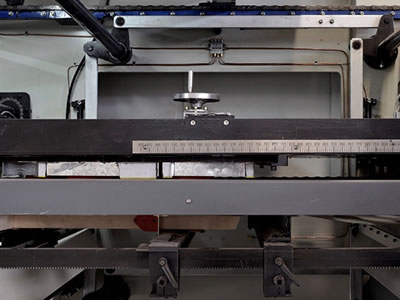

A central position system and pneumatic lock-up system is used for a quick cutting die set up and job changeover.

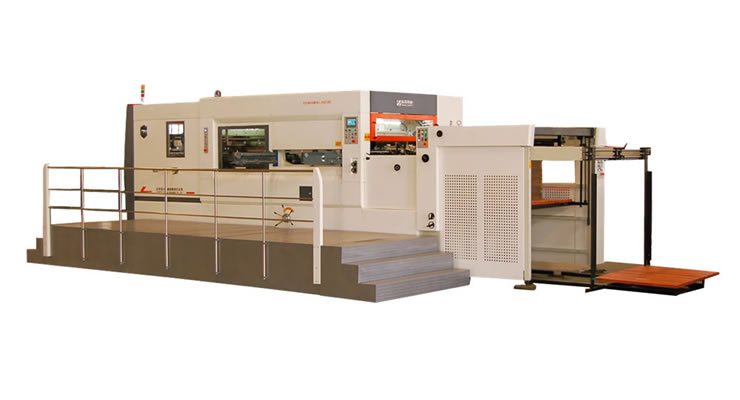

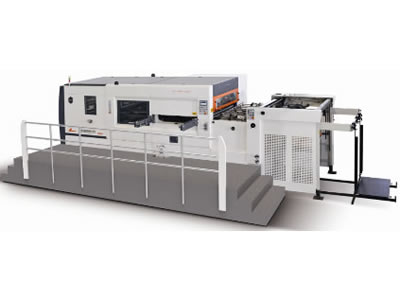

The flatbed die cutter uses internationally known brand names for bearings, the main drive chain and electronic components.
Human machine interface monitors the automatic die cutter’s working situation, as well as provides easy operation and easily understood malfunction diagnoses.

Male/Female stripping plate for different job requirements.
Double stripping function with a lock-up system.
A front waste separator is used to achieve a full stripping and front waste is transferred to the machine’s drive side via conveyor belt.
A centerline system for a fast stripping die set up and job changeover.

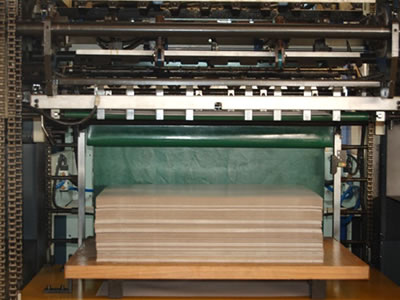

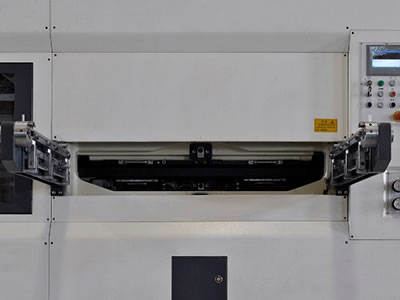

Non-stop delivery system for continuous productivity.
A delivery control panel has icons for easy operation.
Photoelectrical devices for safe operation and operator’s machine entrance.

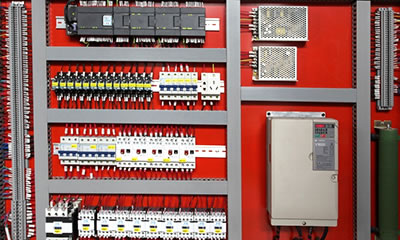

The electrical control system uses Siemens latest PLC technology.
It also uses electrical components from internationally known brands for better performance and a fast, local, after-sales service and maintenance.
The die cutter is equipped with different safety protection devices. The machine will alarm and stop automatically when problems occur, ensuring the safety of both the machine and operator.
